All About Dynalites
Dynalites

LUCAS TYPE DYNALITES

Powerlite Dynalites are individually designed and hand built by highly experienced auto electricians in our West Midlands based factory. Ideal for both road and competition, the original Powerlite Dynalite provides the benefits of a modern alternator, whilst retaining the original appearance of a dynamo. All Lucas type Dynalites are identical in fitting to original units, requiring no fitting kits, brackets or other modifications to the vehicle.

KEY FEATURES:

  • Identical Fitting To Original.
  • Up to 80% More Powerful.
  • Up to 40% Lighter.
  • Positive Earth Models.
  • Tacho Drive & Power Steering models

Dynalites Fitted

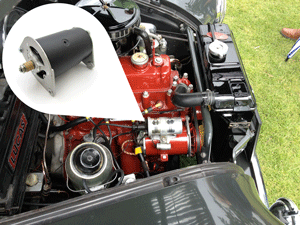

Dynalite fitted:

 The Dynalite retains the period and authentic look of the original Dynamo, combined with modern practicality

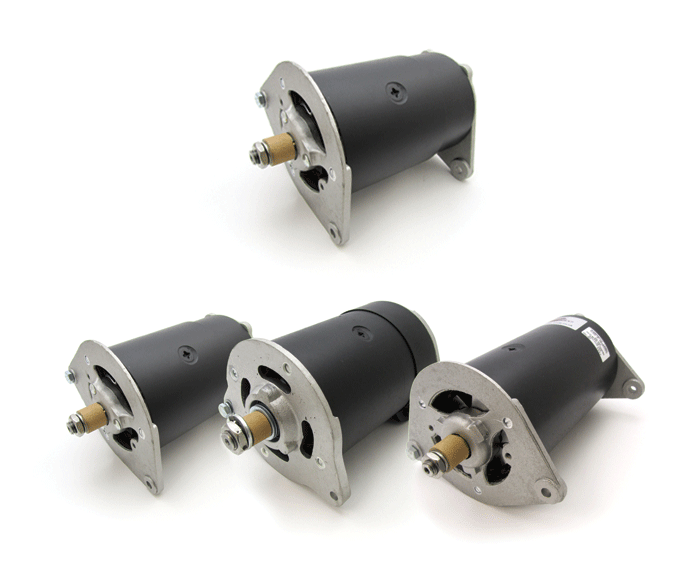

THE RANGE:

The Dynalite range covers the majority of popular Lucas type dynamos, fitted to the majority of British cars in the 50’s and 60’s. The most common types are C39/C40, C42 and C45. The C39/C40 was generally fitted to most small and medium sized cars whilst the C42 and C45 were generally used on larger saloons and sports cars.

Dynalites Range

* Use C40 units to replace C39 type units

WHICH ONE DO I NEED:

The Dynalite units are based upon original dynamo models therefore to choose the correct Dynalite the original unit needs to be identified. Identifying your existing dynamo is simple, Lucas dynamos are stamped with the model type. (Rust and paint may need to be removed to identify type).


The diagram (below) shows the text found on C40L dynamo.

Dynalite Label

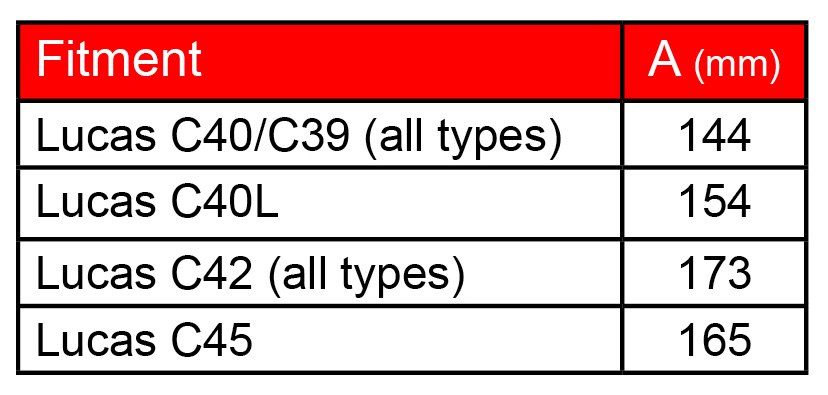

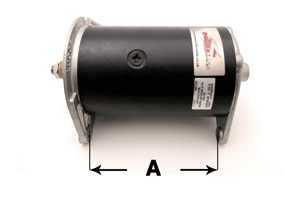

If the dynamo cannot be identified from the stamping, the following table can aid identification from the fitting dimensions.
Dynalites FitmentsDynalites Fitments

 FITTING:

The philosophy behind the Dynalite is to create an alternator that is identical to the original dynamo unit in appearance and fitting, requiring no modifications to the vehicles existing mountings or wiring connections.
* Some wiring changes are necessary.

Dynalites Fitments

The Dynalite uses the same output shaft as the original dynamo allowing the original fan and pulley to be used.


* Dynalites MUST run a cooling fan. Original types are acceptable.
* Dynalites operate best using a 2:1 pulley ratio. It is sometimes necessary to use smaller pulleys on large saloons with low revving engines

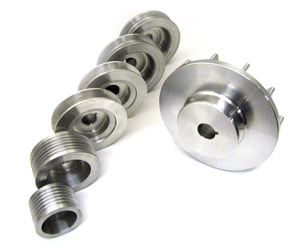

ALLOY PULLEYS: We offer a range

of lightweight pulleys and uprated fans

suitable for Dynalites.

ALLOY PULLEYS

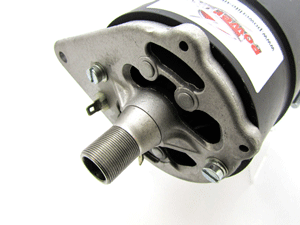

SPECIAL UNITS:

Power steering and Tacho drive models are available. These are identical in fitting to the original units and can be directly substituted.



SPECIAL UNITSSPECIAL UNITS

WIRING:

What changes need to be made to the wiring?

The Dynalite unlike a dynamo is self regulating, therefore the control box is redundant. There are two ways to rewire the control box for the Dynalite unit. The first is to simply bypass or use the control box as a junction point with two small wiring changes. The second and preferred option is to fit a Powerlite dummy control box.



Dummy Control Boxes:


Identical in fitment and appearance to the original, the dummy unit is pre-wired to aid the necessary changes. Dummy boxes are fitted with an 40A fuse, protecting your electrical system.
We recommend the use of dummy control boxes where applicable.

Dummy Control Boxes

Dummy Control Box

RB340

RB340

RF95

RF95

RB106

RB106

 All wiring between the battery and Dynalite should be rated to at least 40Amps (unless stated).

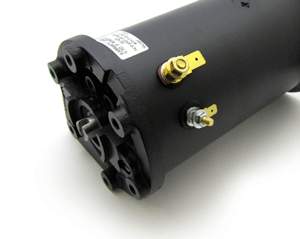

Positive Earth:

Positive Earth
Unlike a Dynamo which can be re-polarised, an alternator cannot. Therefore units are available in positive earth. Positive earth units are identical in appearance and fitting to Negative earth units, except for the addition of a relay. (included with all positive earth units).
