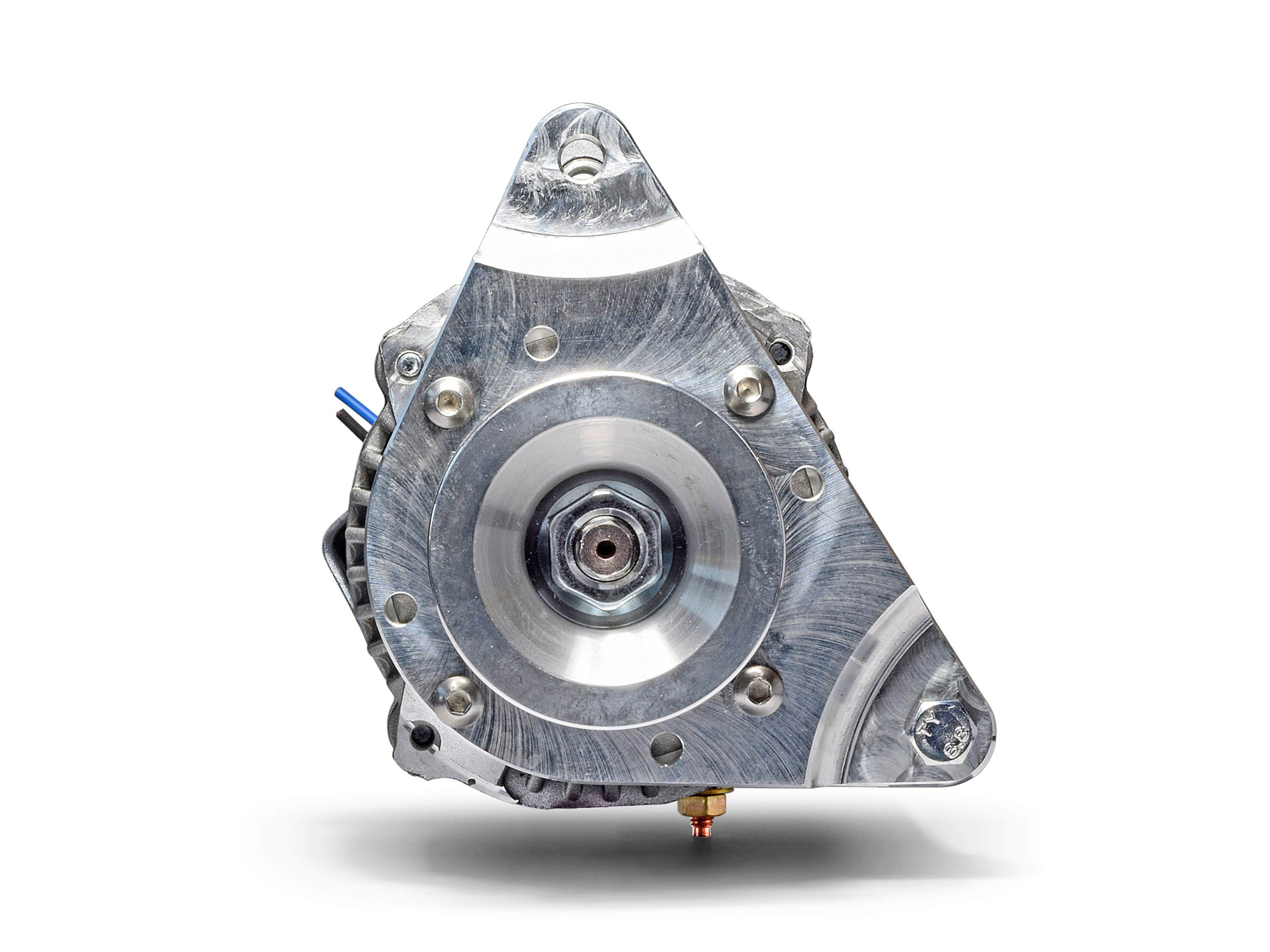

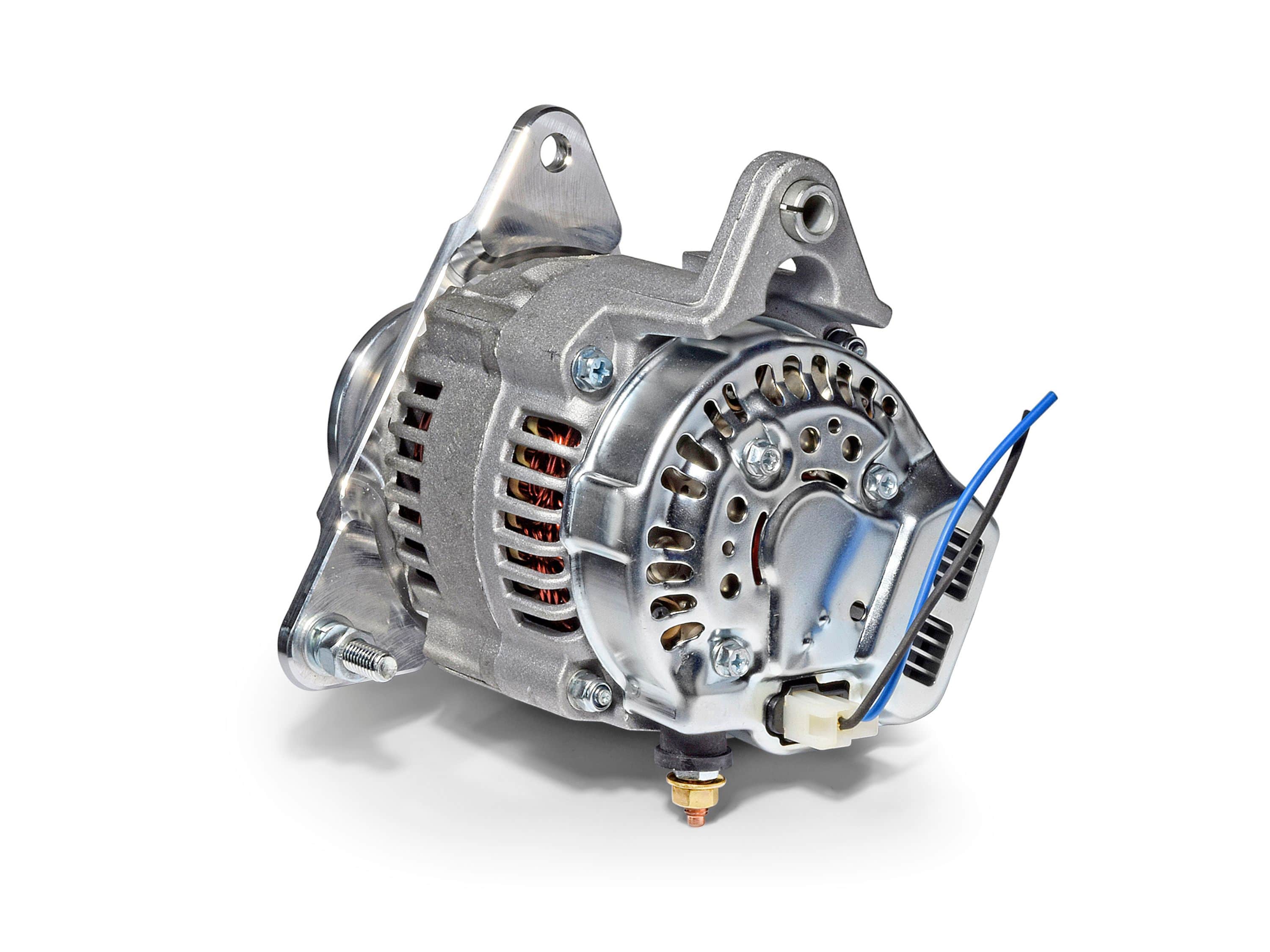

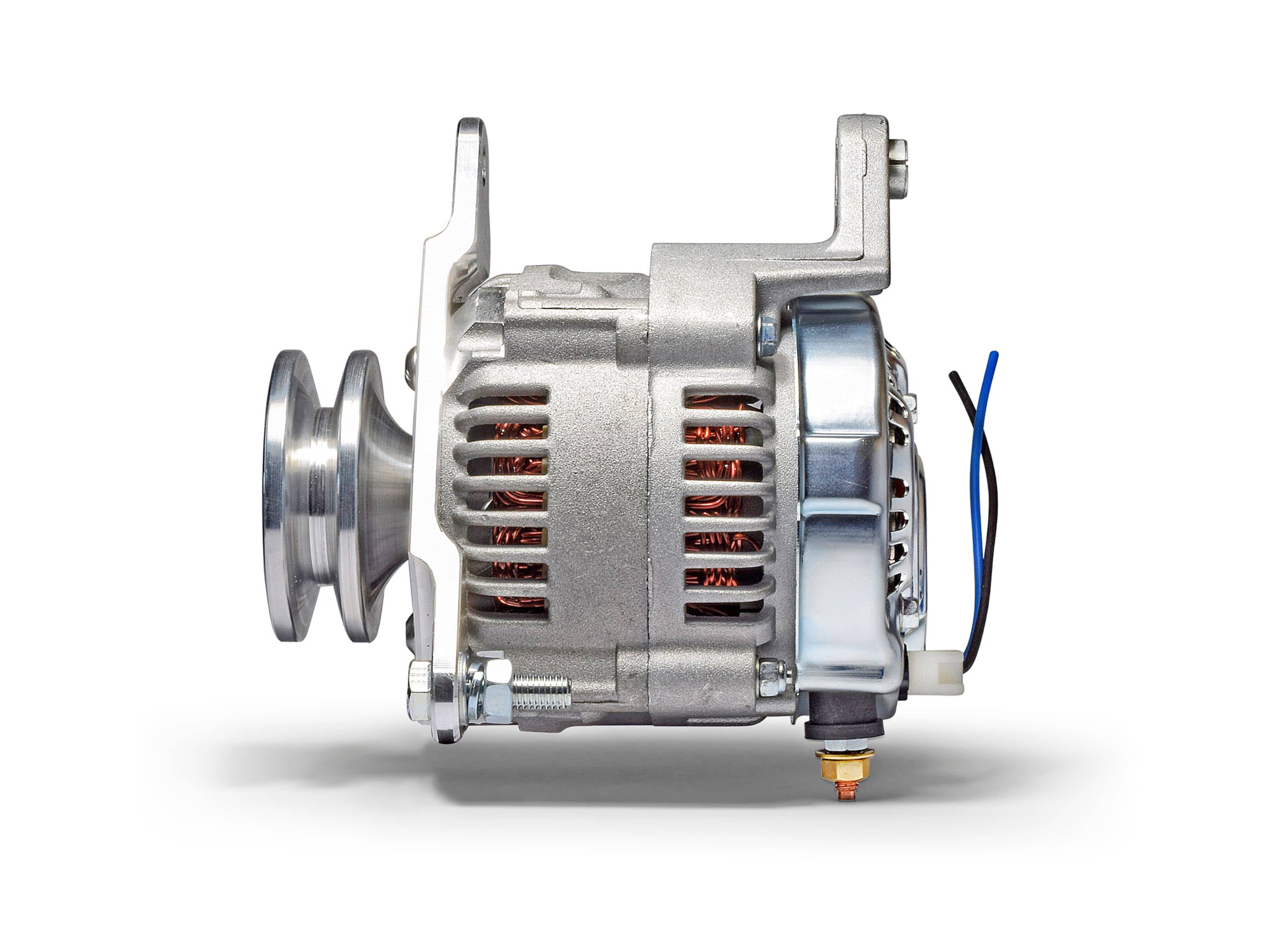

Lucas duplicate, "multi-mount" alternator. This compact alternator has been designed by us to the exact pattern and size of a traditional Lucas ACR type alternator. With an easily adjustable adaptor plate, the alternator can be mounted on either side of an engine.See RAC068R for large pulley version. Also available in our Alternator Fitting Kits

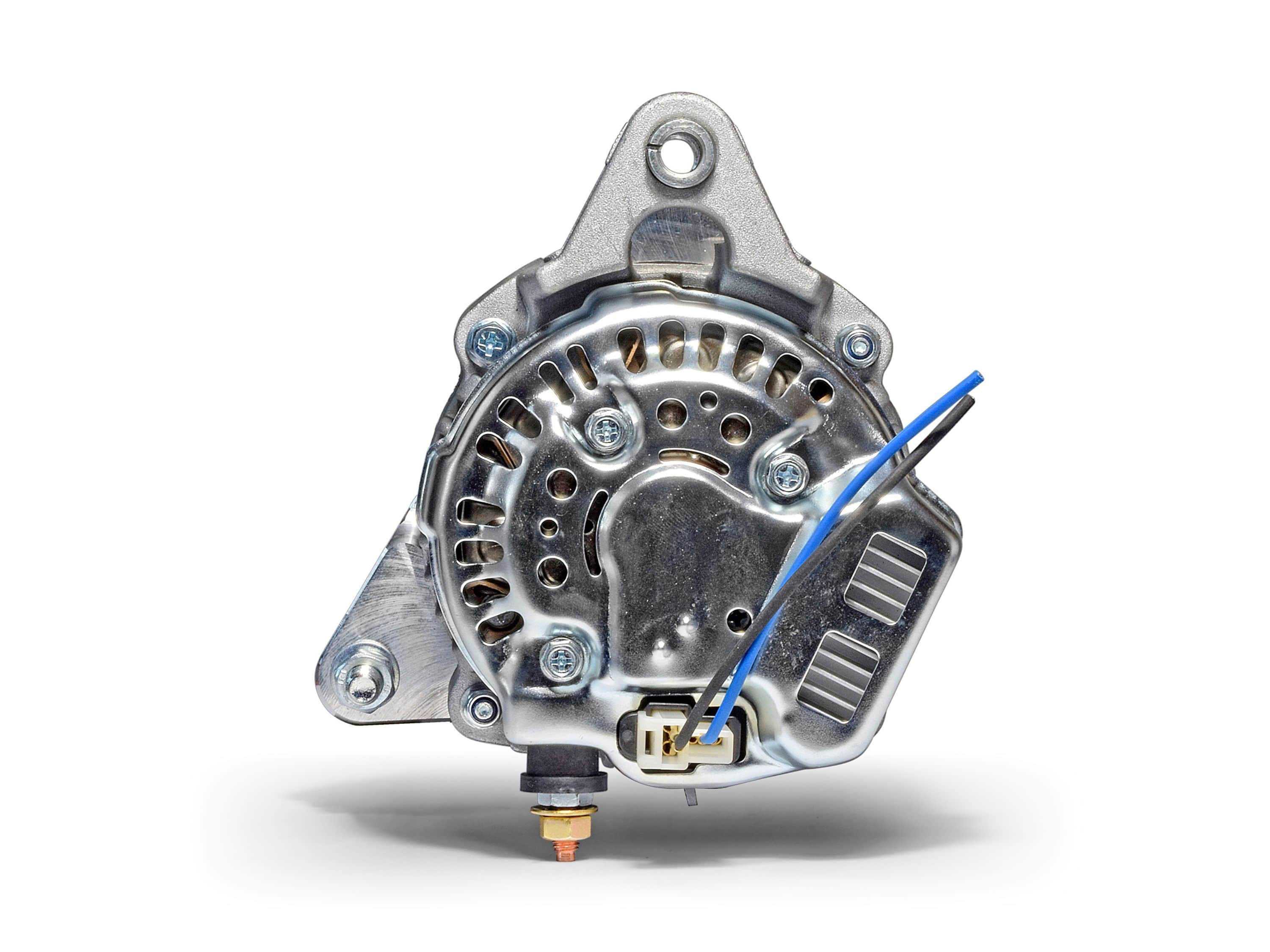

Fitted with RAC902 Plug connector. Early types had Green / Yellow leads, later types had Blue / Black leads.
| SPECIFICATION |
|---|
| Amps | 50 A |
|---|
| Shaft diameter | 15 mm |
|---|
| Voltage | 12 V |
|---|
| Weight | 3.00 kg |
|---|
| Wiring configuration | RAC902 |
|---|
